• Industrial robust design and compact metal housing
• High data speed via 4G LTE
• Strong electromagnetic interference Resistance, heat endurance and radiation ability
• Supports multiple VPN (IPSec, OpenVPN, VPN Client, GRE, etc.)
• Supports multiple network protocol (ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.)
• Supports multiple functions (DHCP, DNS, DDNS, Firewall, NAT, DMZ host etc.)
• Built-in watch dog, Multi-link detection ensures working in stable and secure way
• Network failover and failback
• 2xLAN or 1xLAN + 1xWAN
• WAN port support PPPoE, static IP, DHCP client, 3G/4G.
• Always online, automatic reboot if disconnected to ensure continual connection
• LCP/ICMP/flow/heartbeat check, to ensure network usability
• Web/CLI/SSH/Management platform support, easy to configure
• SNMP network management, NTP support
• Local & remote management (configuration, status, upgrade firmware, ping, reboot)
• Supports Port forwarding and Bridge
• Supports timing operation
• Supports LED status indication
• Shock and vibration resistant
• Control by SMS, Email
• Schedule reboot
|
Module:
|
Quectel EC25-AF
|
Category:
|
Cat-4
|
Carrier Approvals:
|
Verizon, AT&T,T-Mobile
|
Regulatory Approvals:
|
FCC/IC, PTCRB, GCF
|
Frequency Bands:
|
4G LTE - B2, B4, B5, B12, B13, B14, B66, B71, 3G WCDMA - B2, B4, B5
|
Data Speeds LTE:
|
DL 150 Mbps / UL 50 Mbps
|
|
|
Router:
|
|
VPN:
|
IPSec, PPTP/L2TP Client, GRE, PPTP Server
|
Protocol:
|
ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.
|
Management:
|
Local or remote web browser (IE v8 or above), CLI/Telnet command, Remote management, SSH configure
|
Interface Type:
|
5 x 10/100 Mbps port (RJ45)
LED: “WLAN”, “WAN”, “LAN”, “NET”
2 x SMA-K antenna interface
SIM/UIM: 1.8V/3V
Power: “PWR” 5V ~ 30V
Reset: “RST”
|
Power Adapter:
|
Certificate: FCC, UL
|
Power Consumption:
|
Idle: <45mA@12VDC
Data: <300mA@12VDC
Average:150mA@12VDC
|
Physical:
|
Operating Temperature
Storage: -40°C to 85°C
Working: -30°C to 75°C
Humidity: 95% Maximum (Non-condensing)
|
Dimensions:
|
Item (L x W x H): 6 x 4 x 1 Inch
Packaging (L x W x H): 9.3 x 5.8 x 3 Inch
Weight Item: 0.8 lbs.
Packaging: 1.8 lbs. total weight including product
|
Certificate:
|
FCC, ISO, CE, RoHS
|
Package Content:
|

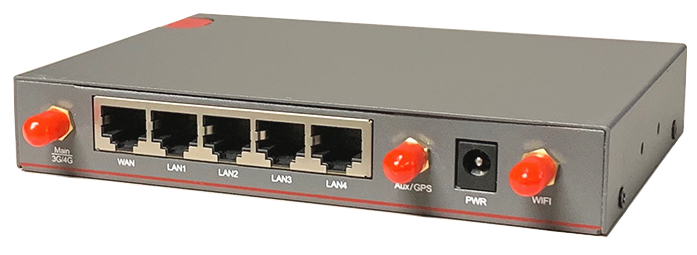

WTI 5 Port Router
CAT5 Ethernet Cable
Power Adapter
2 x Cellular Antenna - Mag Mount
|
Wifi:
|
Optional
|
|
